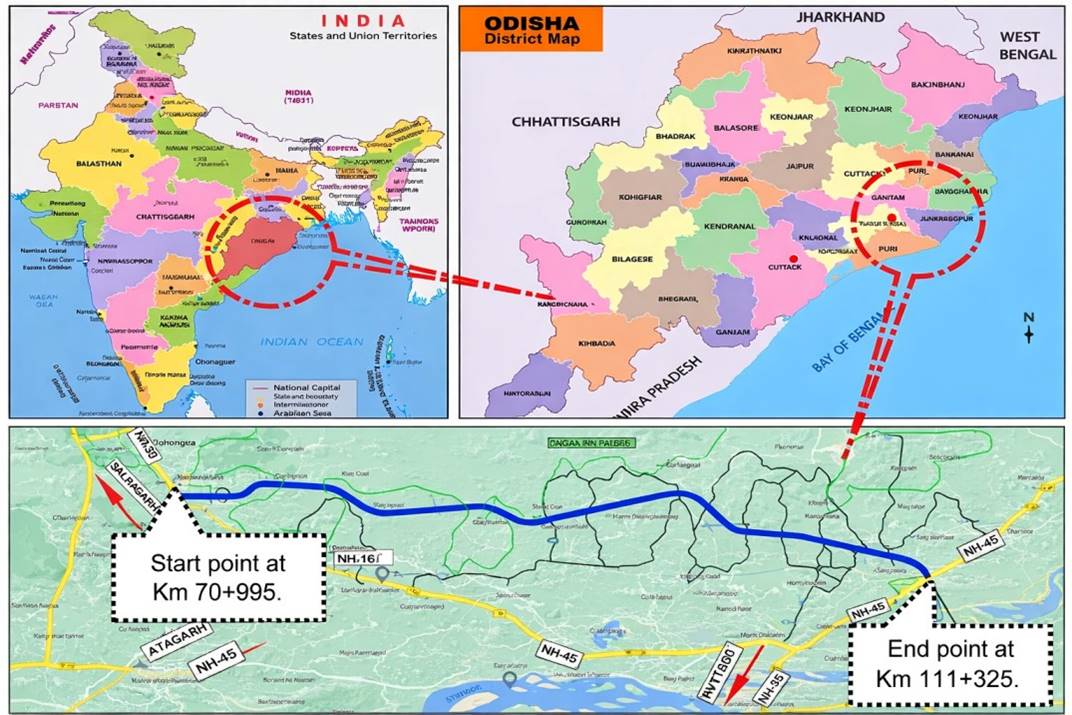

Project Location (Odisha)

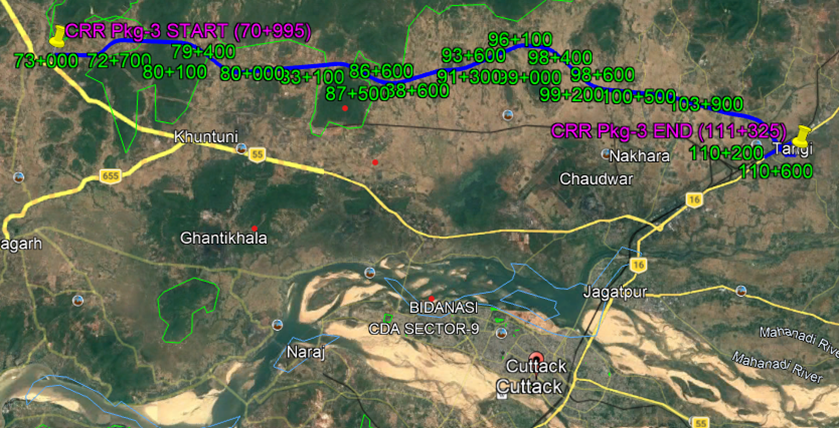

Alignment Elevation

Broad Scope of Work

  • ❖ CLength of Project 40.33 Km (6 Lane)
  • ❖ CLength of Structure 5.240 Km
  • ❖ Service Road 18.18 Km (2 Lane)
  • ❖ Loop/Ramp 6.59 Km
  • ❖ Toll Plaza 12 Lane (At 1 Location)

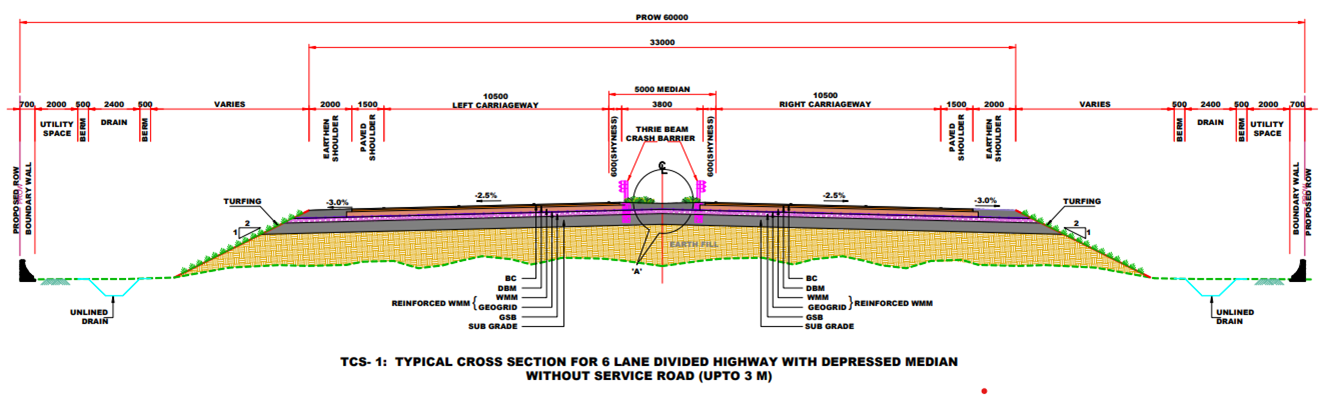

  • ❖ 6 LANE DIVIDED HIGHWAY WITH DEPRESSED MEDIAN WITHOUT SERVICE ROAD (UPTO 3 M)

Broad Scope of Work

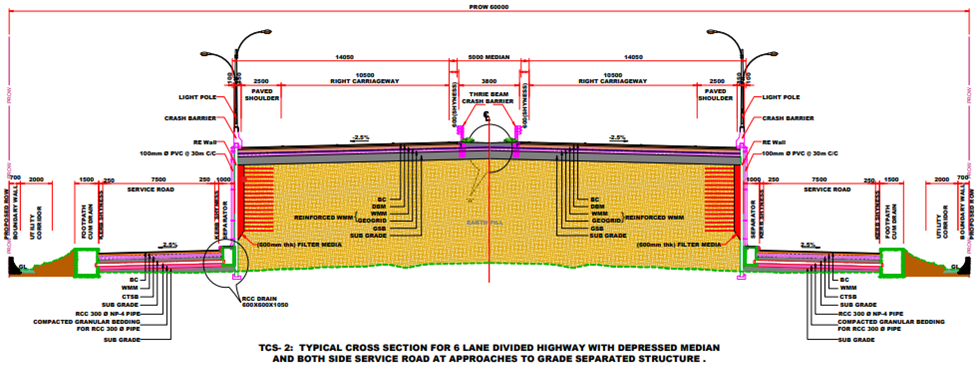

  • ❖ 6 LANE DIVIDED HIGHWAY WITH DEPRESSED MEDIAN AND BOTH SIDE SERVICE ROAD AT APPROACHES TO GRADE SEPARATED STRUCTURE

Broad Scope of Work

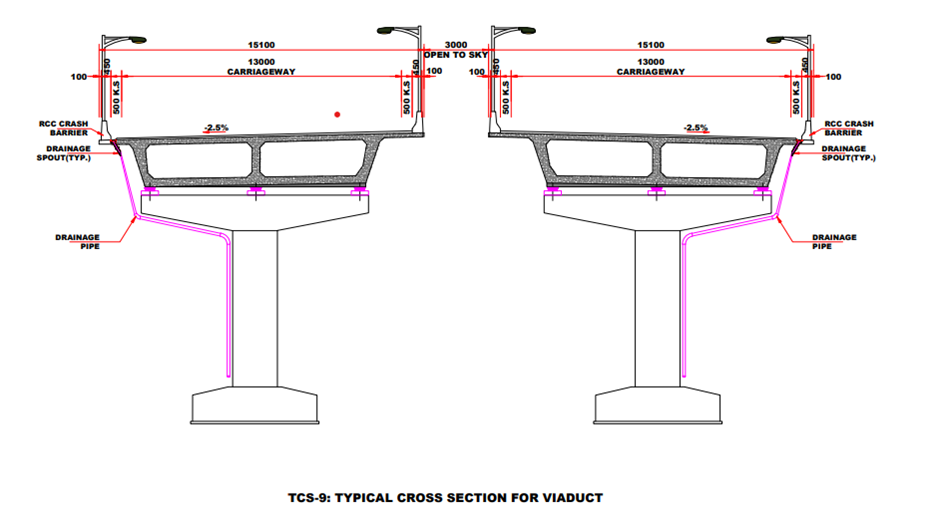

  • ❖ 6TYPICAL CROSS SECTION FOR VIADUCT
